kmMqtt::mqtt::BasePacket Class Reference

Base class for all MQTT packets. More...

#include <BasePacket.h>

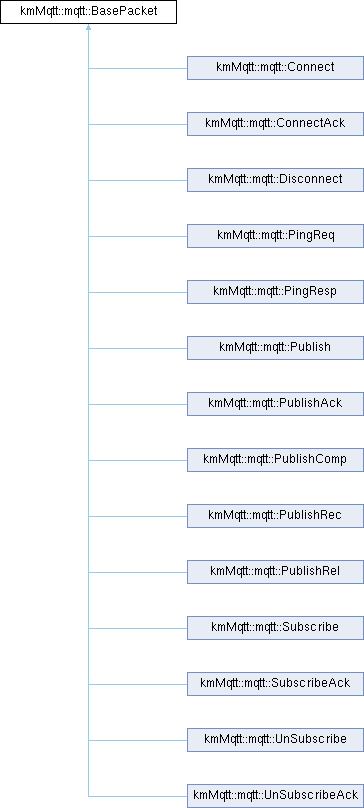

Inheritance diagram for kmMqtt::mqtt::BasePacket:

Public Member Functions
virtual PacketType	getPacketType () const noexcept=0
	Gets the packet type of the MQTT packet.
EncodeResult	encode ()
	Encodes the MQTT packet into a ByteBuffer.
DecodeResult	decode ()
	Decodes the MQTT packet from the internal data buffer.
const FixedHeader &	getFixedHeader () const
	Gets the fixed header of the MQTT packet.
const ByteBuffer &	getDataBuffer () const
	Gets the data buffer of the MQTT packet.
ByteBuffer &&	extractDataBuffer () noexcept
	Extracts the data buffer, transferring ownership to the caller.

Protected Member Functions
std::size_t	calculateFixedHeaderRemainingLength () const
	Calculates the remaining length for the fixed header based on other headers.
virtual void	onFixedHeaderDecoded () const
	Callback invoked after the fixed header has been decoded.
void	addEncodeHeader (const IEncodeHeader *header)
	Adds an encode header to the packet.
void	addDecodeHeader (IDecodeHeader *header)
	Adds a decode header to the packet.

Detailed Description

Base class for all MQTT packets.

Provides common functionality for encoding and decoding packets, managing fixed headers, and handling data buffers.

Member Function Documentation

addDecodeHeader()

void kmMqtt::mqtt::BasePacket::addDecodeHeader ( IDecodeHeader * header )

protected

Adds a decode header to the packet.

The base packet does not take ownership of the header. Addition order matters! These are decoded in the order they are added.

Parameters

header

Pointer to the IDecodeHeader to add.

addEncodeHeader()

void kmMqtt::mqtt::BasePacket::addEncodeHeader ( const IEncodeHeader * header )

protected

Adds an encode header to the packet.

The base packet does not take ownership of the header. Addition order matters! These are encoded in the order they are added.

Parameters

header

Pointer to the IEncodeHeader to add.

calculateFixedHeaderRemainingLength()

std::size_t kmMqtt::mqtt::BasePacket::calculateFixedHeaderRemainingLength ( ) const

protected

Calculates the remaining length for the fixed header based on other headers.

Returns

The calculated remaining length as a size_t.

decode()

DecodeResult kmMqtt::mqtt::BasePacket::decode

(

)

Decodes the MQTT packet from the internal data buffer.

Returns

A DecodeResult indicating success or failure of the decoding process.

encode()

EncodeResult kmMqtt::mqtt::BasePacket::encode

(

)

Encodes the MQTT packet into a ByteBuffer.

Returns

An EncodeResult indicating success or failure of the encoding process.

extractDataBuffer()

ByteBuffer && kmMqtt::mqtt::BasePacket::extractDataBuffer ( )

noexcept

Extracts the data buffer, transferring ownership to the caller.

Returns

A ByteBuffer containing the packet data.

getDataBuffer()

const ByteBuffer & kmMqtt::mqtt::BasePacket::getDataBuffer

(

)

const

Gets the data buffer of the MQTT packet.

Returns

A constant reference to the ByteBuffer containing the packet data.

getFixedHeader()

const FixedHeader & kmMqtt::mqtt::BasePacket::getFixedHeader

(

)

const

Gets the fixed header of the MQTT packet.

Returns

A constant reference to the FixedHeader.

getPacketType()

virtual PacketType kmMqtt::mqtt::BasePacket::getPacketType ( ) const

pure virtualnoexcept

Gets the packet type of the MQTT packet.

Returns

The PacketType enum value representing the packet type.

Implemented in kmMqtt::mqtt::Connect, kmMqtt::mqtt::ConnectAck, kmMqtt::mqtt::Disconnect, kmMqtt::mqtt::PingReq, kmMqtt::mqtt::PingResp, kmMqtt::mqtt::Publish, kmMqtt::mqtt::PublishAck, kmMqtt::mqtt::PublishComp, kmMqtt::mqtt::PublishRec, kmMqtt::mqtt::PublishRel, kmMqtt::mqtt::Subscribe, kmMqtt::mqtt::SubscribeAck, kmMqtt::mqtt::UnSubscribe, and kmMqtt::mqtt::UnSubscribeAck.

onFixedHeaderDecoded()

virtual void kmMqtt::mqtt::BasePacket::onFixedHeaderDecoded ( ) const

protectedvirtual

Callback invoked after the fixed header has been decoded.

Can be overridden by derived classes for additional processing thats required post fixed header decoding.

Reimplemented in kmMqtt::mqtt::Publish, kmMqtt::mqtt::PublishAck, kmMqtt::mqtt::PublishComp, kmMqtt::mqtt::PublishRec, and kmMqtt::mqtt::PublishRel.

---

The documentation for this class was generated from the following file:

• D:/Dev/Repos/kmMqtt/include/public/kmMqtt/Mqtt/Packets/BasePacket.h
